Name: Akubela HyPanel Lux RT61-D1-US Smart Home Control Center
Brand: Akuvox
SKU: RT61-D1-US
Availability: InStock

Smart Home Control Panel, 2.1'' Touchscreen, Wi-Fi 2.4G/5G, Bluetooth 4.2, ZigBee 3.0, 1-Gang Dimmer

Akubela HyPanel Lux RT61-D1-US Smart Home Control Center

(0 Customer Reviews)

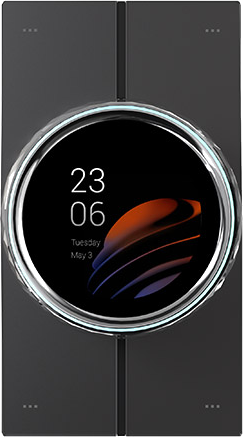

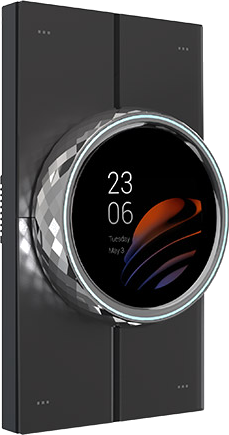

Akubela HyPanel Lux (RT61-D1-US) is a premium smart control panel that brings intelligence and style to your smart home. Featuring Android 10 and a powerful Qualcomm processor, it integrates smart intercom, ZigBee 3.0, infrared control, and home automation into one elegant wall unit. The 2.1” circular touchscreen is surrounded by a 16-million color RGB light ring, a durable metal knob with tactile feedback, and 4 physical AG glass buttons — delivering intuitive and multi-modal interaction. With built-in sensors, dual microphones, dual speakers, and support for vertical or horizontal installation, HyPanel Lux offers a truly modern and intelligent living experience.

Datasheet:

View PDF

Order Now

At a Glance

2.1-inch touch screen with 4 AG-glass physical buttons
Infinite metal knobs with damping and ratchet mode
Light ring with more than 16 million colors
Kinds of sensors and Infrared remote control built-in

Support horizontal and vertical installation adaptive
Android 10 system in High-powered Qualcomm chip
Smart intercom, ZigBee gateway, home automation ALL IN ONE

Model : RT61-D1-US
Brand : Akubela
Category : Smart Buildings, Akubela, Zigbee HyPanel Series

Share Product:

Description

Basic Information
Manufacturer: Akubela

Model: RT61-D1-US

Size: 2.1 Inch

OS: Android 10

RAM / ROM: 1GB / 8GB

Resolution: 480×480 pixels

Speaker: One Speaker, 8Ω / 1.5W
Power & Voltage
Power: 100-260VAC, 50/60Hz

Power Output: 1 gang, 400W total, 200W/110V/gang for resistive, 400W/220V/gang for resistive, 150W/gang for LED/CFL

Power Meter: Supported
Design & Installation
Wire Range: 0.5 ~ 2.5mm2 (24 ~ 12AWG)
Appearance
Screen: multi-touch screen

Screen Brightness: 210 cd/m2

Material: V0 fireproof PC + 4 AG glass buttons + 1 metal knob

Connectivity & Protocols
Wi-Fi: IEEE 802.11 b/g/n, @2.4GHz/5GHz

Bluetooth: Support Bluetooth 4.2

Ethernet Port: 1×RJ45, 10/100Mbps adaptive

Zigbee: ZigBee 3.0

ZigBee Sub-Device Limit: 128
Sensors Built In
Microphone: Dual Microphones, - 42dBV

Proximity Sensor: 30 ~ 60cm

Light Sensor: Low-level lux detection

Gravity Sensor: 3-axis

Temperature Sensor: ±1°C

Humidity Sensor: ±5%
Application Scenario
IR Control Coverage: Horizontal 90°, vertical 90°, 6m
Working Environment
Environment: For indoor use only

Temperature Range: -10°C to 55°C

Humidity Range: 10% to 90%RH, without condensation
