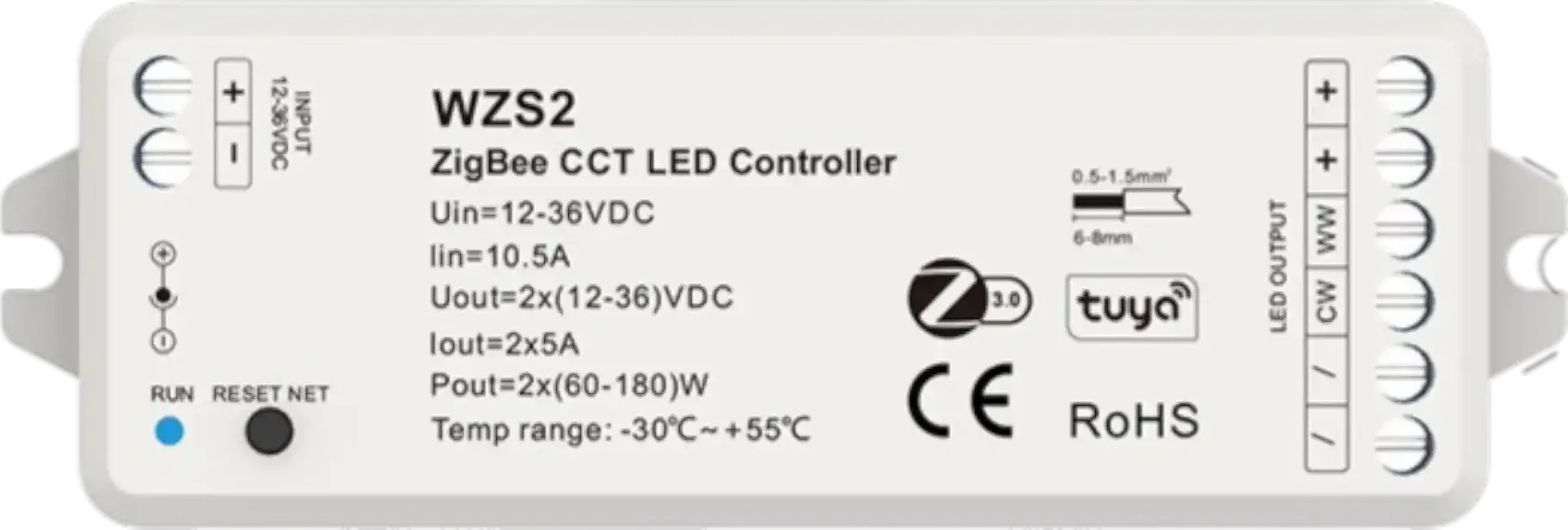

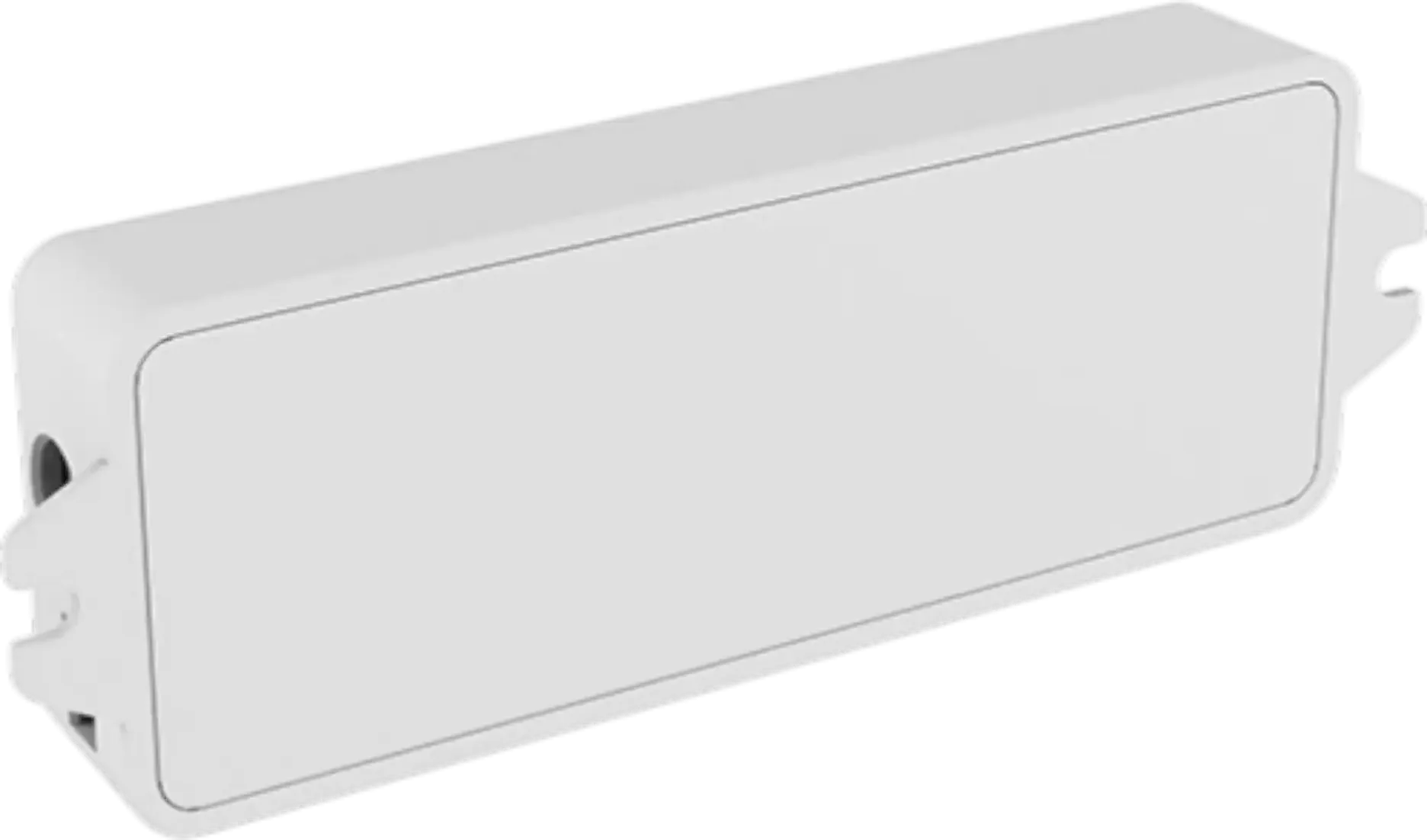

ZigBee CCT LED Controller

Akubela CTT LED Controller WZS2, ZigBee 3.0, low-voltage, brightness adjustment, flicker-free
dimming, IP20 Rating.

ZigBee CCT LED Controller

(0 Customer Reviews)

This ZigBee LED controller connects to low-voltage CCT LED strips, providing smooth, flicker-free dimming for customizable lighting ambiance.

Datasheet:

View PDF

Order Now

At a Glance

Control low-voltage CCT LED strips
DC power socket input
Relay capability for forwarding and routing signals

PWM Frequency: 4KHz
Support control via Belahome APP and HyPanel devices

Model : WZS2
Brand : Akubela
Category : Smart Buildings, Akubela, Add on

Share Product:

Description

Basic Information
Manufacturer: Akubela

Model: WZS2

Light Type: CCT

Dimensions: 114 × 38 × 20 (mm)
Specification
Number Of Output Channels: 2

Input Current: 10.5A

Output Current: 2CH, 5A/CH

Output Power: 2 × (60 ~ 180)W

PWM Frequency: 4KHz

Dimming Level: 65536 (2^16) levels

Dimming Range: 0 ~ 100%
Power & Voltage
Power Input: 12-36VDC

Output Voltage: 12-36VDC

Connectivity & Protocols
Input Signal: Zigbee 3.0
Working Environment
IP Level (Water-proof & Dust-proof): IP20
Safety & Compliance
Certification: CE, EMC, RED
