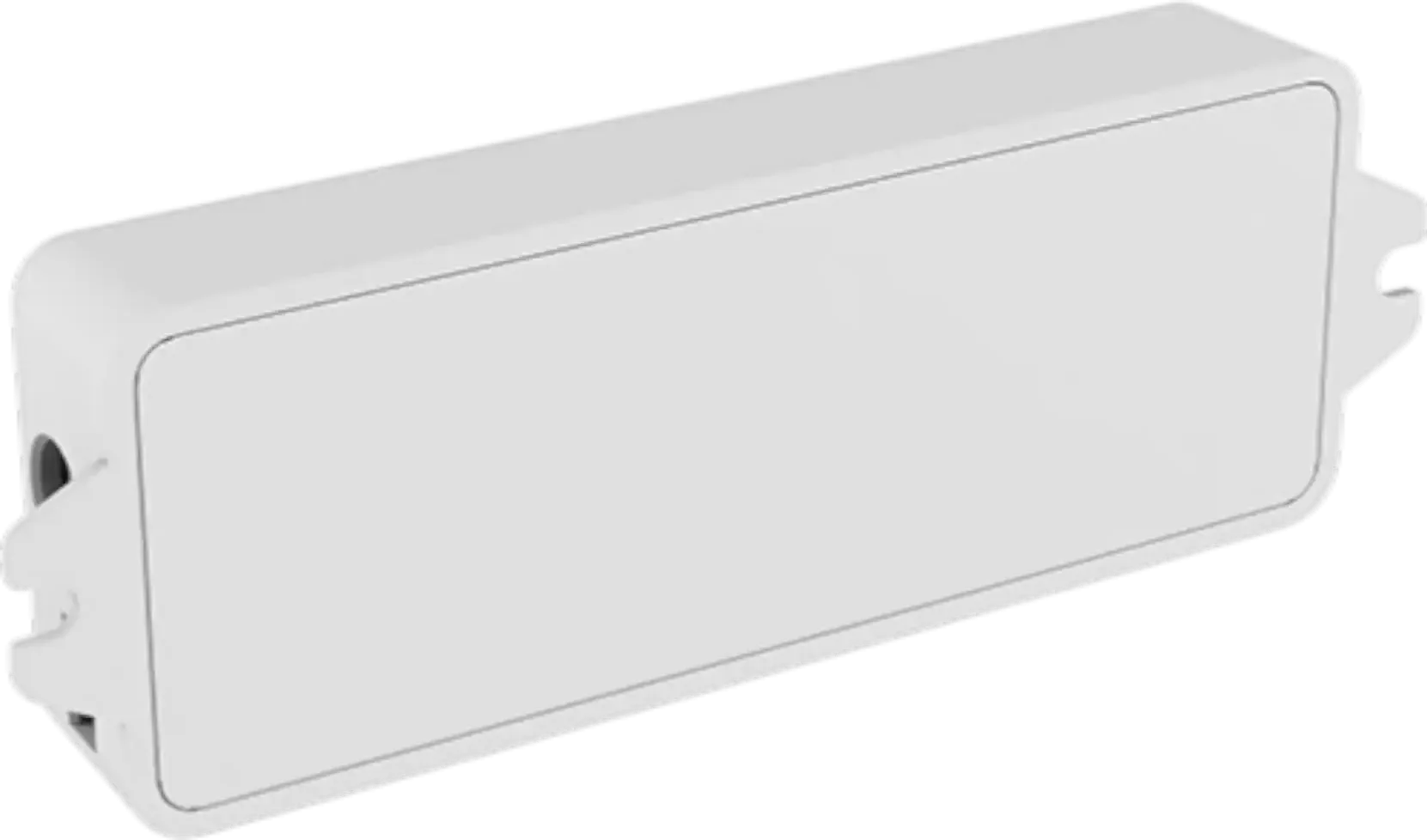

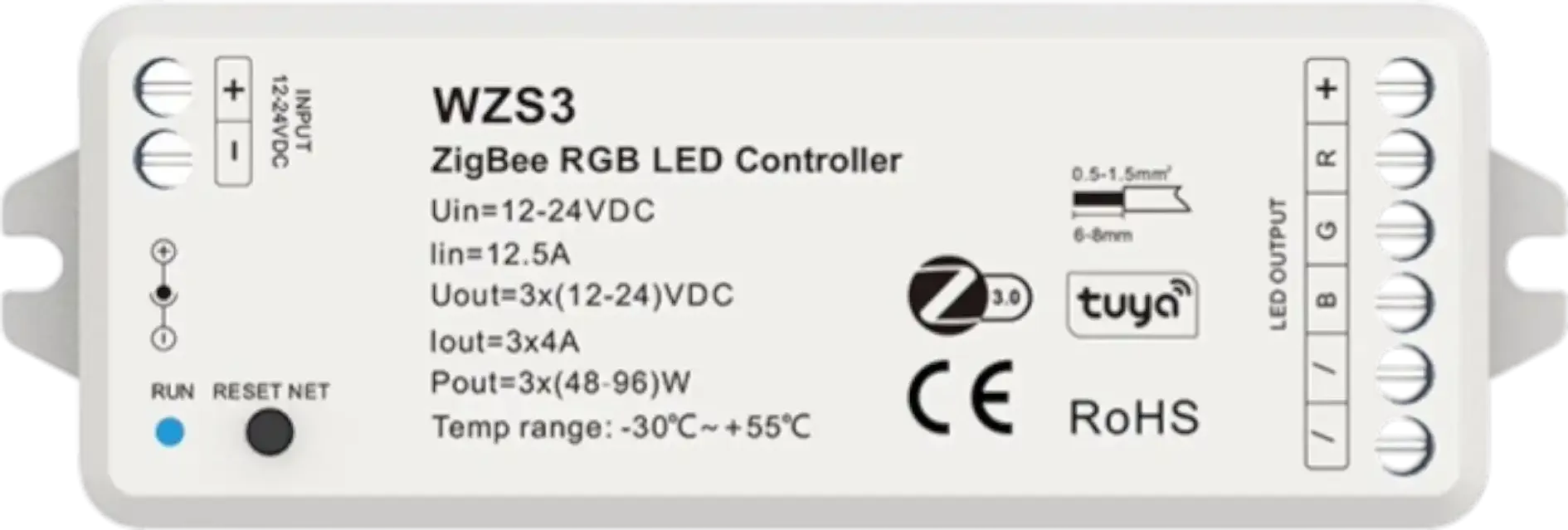

ZigBee RGB LED Controller WZS3

Akubela RGB LED Controller WZS3, ZigBee 3.0, low-voltage, brightness adjustment, flicker-free
dimming, IP20 Rating.

ZigBee RGB LED Controller WZS3

(0 Customer Reviews)

This ZigBee 3.0 LED controller connects to low-voltage RGB LED strips, providing smooth, flicker-free dimming for customizable lighting ambiance.

Datasheet:

View PDF

Order Now

At a Glance

Control low-voltage RGB LED strips
DC power socket input

Relay capability for forwarding and routing signals
Support control via Belahome APP and HyPanel devices

Model : WZS1
Brand : Akubela
Category : Smart Buildings, Akubela, Add on

Share Product:

Description

Basic Information
Manufacturer: Akubela

Model: WZS1

Light Type: RGB

Dimensions: 114 × 38 × 20 (mm)
Specification
Number Of Output Channels: 3

Input Current: 12.5A

Output Current: 3CH, 4A/CH

Output Power: 3 × (48 ~ 96)W

PWM Frequency: 2KHz

Dimming Level: 65536 (2^16) levels

Dimming Range: 0 ~ 100%
Power & Voltage
Power Input: 12-24VDC

Output Voltage: 12-24VDC

Connectivity & Protocols
Input Signal: Zigbee 3.0
Working Environment
IP Level (Water-proof & Dust-proof): IP20
Safety & Compliance
Certification: CE, EMC, RED
